Uranium orebody discovered by drilling under radon anomaly

The Role of Radon in the McClean Lake North Uranium Discovery

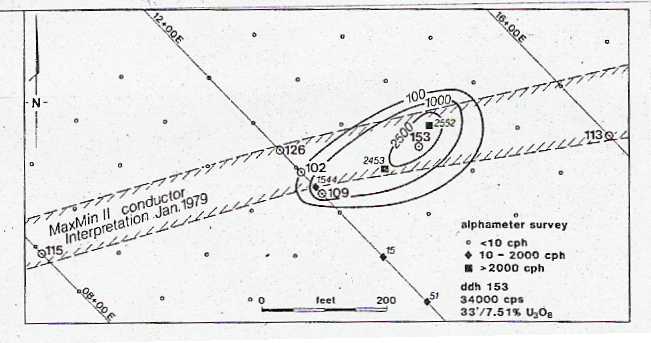

A drill hole in the centre of a strong radon anomaly intersected 33 feet of 7.51% U₃O₈ at 500 feet depth
The radon survey was carried out with alphameters placed under the snow.
Although the ore-grade mineralization was at 500 feet, anomalous uranium was observed at much shallower depths. This near surface mineralization may have given rise to the radon anomaly observed at surface.
This information and the attached figure were taken from Saracoglu,N; Wallis,R.H.; Brummer,J.J.; and Golightly,J.P. 1983: Canadian Mining and Metallurgical Bulletin, vol. 76, No. 852.
Alphameters have the advantage that they remain at the sample site and collect data over a period of days, averaging out any temporal variations.
Our instruments have the advantage of instant results at the sample site, with the possibility of immediate follow-up and checking.
Our instruments also determine thoron, and the Rn/Tn ratio is important in recognising false anomalies due to soil permeability. link.

INSTRUMENTS
We measure: radon - radium - thoron - radon daughters - alpha radiation.
The Lucas cell is recognized as the most sensitive and reliable method for these elements.
Our instruments are used around the world in exploration for uranium, oil & gas, groundwater and hydrothermal, and in health physics, earthquake prediction, and evaluation of hydrocarbon and NAPL contamination.
In the radon business since 1968, our latest major instrument update was 2011.
Modern, low-power, field-rugged electronics. Some earlier versions still working after 35 years.
Winter and summer, from the Sahara Desert to the Canadian Shield, our instruments have faced up to severe field conditions.
Sensitive to geochemical trace levels necessary for radon in lake water and for radon-thoron isotope ratios.
Can work in a tent without electricity or be carried from point to point in the field.
50 readings per day. Results available immediately.
Rechargeable battery pack good for a long day in the field and recharges in a few hours.
Can be operated by junior personnel if carefully supervised.
Same instruments used for radon and radium in soil, sediment, plant parts, rocks, water, soil gas, air, and snow, and for radon daughters in air.
Click here for pictures of instruments.
Click here for or other instruments, components and assessories we provide
For instruments contact
R.H. Morse & Associates Ltd.
1-416-269-9979
morse@finderschoice.com
skype: robert.morse.toronto
Multilingual consulting and training (if required).

Robert H. Morse, Ph.D., P.Eng.
January 27, 2009
radon anomaly at McClean Lake North
